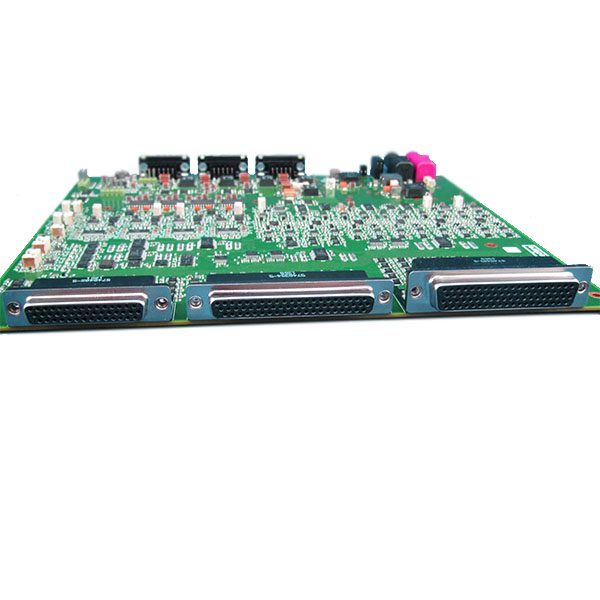

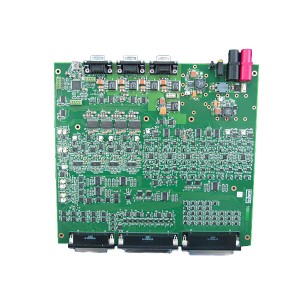

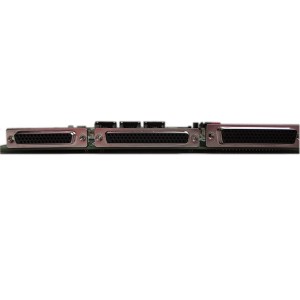

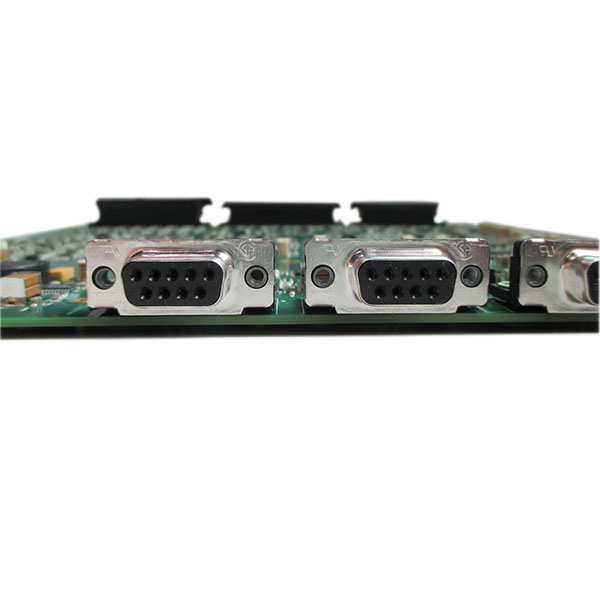

Optical Networking board

Short Description:

This is a PCB assembly project for Optical Networking board. At Pandawill, we understand the complexity and challenge in this industry, that is why we have become experts in electronic manufacturing services (EMS) for telecommunication.


  • FOB Price: US $129/Piece
  • Min Order Quantity(MOQ): 1 PCS
  • Supply Capability:: 100,000,000 PCS per month
  • Payment Terms: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    Product Details

    Layers 6 layers
    Board thickness 1.60 MM
    Material Shengyi S1000-2 FR-4(TG170℃)
    Copper thickness 1 OZ(35um)
    Surface Finish Immersion Gold; Au Thickness 0.05 um; Ni Thickness 3um
    Impedance Single Impedance & Differential Impedance
    Min Hole(mm) 0.20mm
    Min Line Width(mm) 0.15mm
    Min Line Space(mm) 0.16mm
    Solder Mask Green
     Legend Color White
    Board size 210*230mm
    PCB Assembly  Mixed surface mount & through hole assembly
    RoHS Complied Lead free assembly process
    Min components size 0402
    Total components 1868 per board
    IC Package BGA; QFN
    Main IC NXP, Texas Instruments, Maxim, Linear, ADI, ON Semiconductor, Microchip, Fairchild
    Test  AOI, X-Ray, Functional test
    Application Telecom

    With more than 15 years experience as Electronic manufacturing service provider for Telecommunication, we support various devices and telecommunication protocols:

    > Computing devices & equipment

    > Servers & routers

    > RF & Microwave

    > Data centers

    > Data storage

    > Fiber optic devices

    > Transceivers and transmitters



    Connected devices, computing, networking… with various telecommunication protocols making it all possible. Thanks to our contract manufacturer experience for years, we bring high end design, engineering and manufacturing services to the telecommunication industry. With more than 15 years experience in this very specific market, at Pandawill, EMS company, we have developed a thorough knowledge of this industry.



    Telecommunication and data processing are the backbone of the connected devices and cloud era we are witnessing, transforming the way we live at a global scale.



    From supplying the highly reliable telecommunication equipment and integration to support a robust infrastructure and network, or manufacturing the cutting edge telecommunication devices interacting with complex and diverse telecommunication protocols, we mastered over time printed circuit board assembly (PCBA), manufacturing and the testing of telecommunication equipment.



    At Pandawill, we understand the complexity and challenge in this industry, that is why we have become experts in electronic manufacturing services (EMS) for telecommunication.



    In our smart factories, our engineers and expert manufacture products by combining advanced engineering intelligence, PCB prototyping and test engineering with DfT analysis (Design for Test).



    In our smart factories, our engineers and experts manufacture products by combining advanced engineering intelligence, PCB prototyping and test engineering with DfT analysis (Design for Test).
