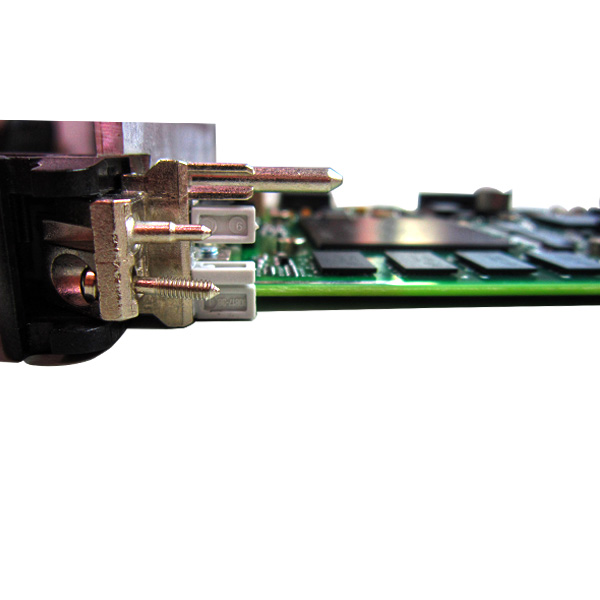

Railway Control System

Short Description:

This is a PCB assembly project for railway singal control system. The industrial industry has been historically one of the major segment served by Pandawill yet we are now witnessing the Internet of Things, with a specific attention towards the Industrial Internet of Things (IIoT), which will bring connectivity and automation to factories and companies around the world.


  • FOB Price: US $129/Piece
  • Min Order Quantity(MOQ): 1 PCS
  • Supply Capability:: 100,000,000 PCS per month
  • Payment Terms: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    Product Details

    Layers 12 layers
    Board thickness 1.60 MM
    Material Isola 370hr
    Copper thickness 2OZ(70um)
    Surface Finish HASL lead free
    Min Hole(mm) 0.30mm via plugged with solder mask
    Min Line Width(mm) 0.10mm (4 mil)
    Min Line Space(mm) 0.10mm (4 mil)
    Solder Mask Green
     Legend Color White
    Board size 148*260mm
    PCB Assembly  Mixed surface mount & through hole assembly
    RoHS Complied Lead free assembly process
    Min components size 0402
    Total components 1095 per board
    IC Package BGA; QFN
    BGA 8
    BGA ball quantity 1489
    Mimimum BGA spacing 0.80 mm
    Minimum IC spacing 0.50 mm
    Main IC Maxim, ON Semiconductor, Micron, Texas Instruments, NXP Semiconductors, Linear, Fairchild Semiconductor, ST, Cypress Semi, Freescale, IDT
    Test  AOI, X-Ray, Functional test
    Conformal coating 9-20557-LV Dymax
    Application Railway signal control system

    Industrial applications consist of various technologies applied to numerous industries. From printed circuit board assembly (PCBA) to full product assembly and manufacturing, it implies dealing with complex electronic circuit boards as well as mechanical enclosures (sheet metals, CNC, plastics), to reach the perfect result for our customers. Your EMS partner must be expert for years in electronic manufacturing solutions.



    The industrial industry has been historically one of the major segment served by Pandawill yet we are now witnessing the Internet of Things, with a specific attention towards the Industrial Internet of Things (IIoT), which will bring connectivity and automation to factories and companies around the world.



    To support such advancement, teaming up with the right partner is instrumental to bringing new products to market succesfully. At Pandawill, we offer the full array of services from design and specifications definition to mass-production at all of our 18 locations.



    As an electronic contract manufacturing company and industrial electronics manufacturer, leader in our fields, we have integrated in our factories new methods brought with the industry 4.0, like: automation, artificial intelligence, cloud computing, 3D-Printing, Internet of Things platforms (IoT), big data and analytics.



    Electronic manufacturing service provider for industrial, our capabilities include:

    > ATM & Industrial machines

    > Automation devices and equipment

    > Machinery

    > Vending machines

    > Power systems

    > Electrical transmissions

    > Receivers, Transceivers

    > Power tools

    > Instrumentation devices and equipment
