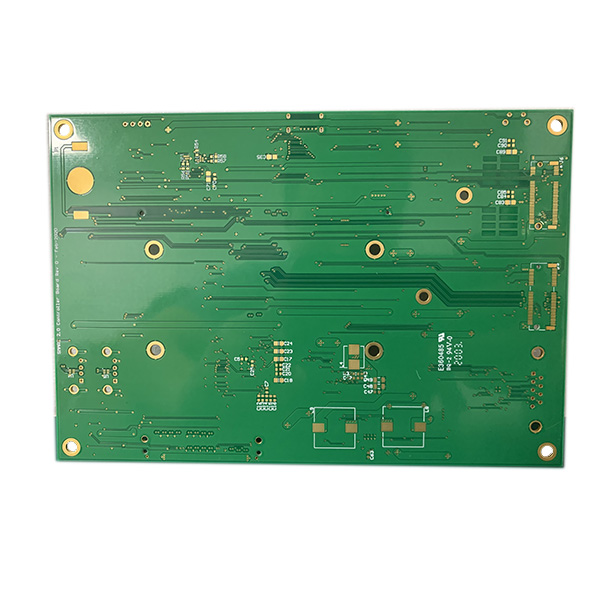

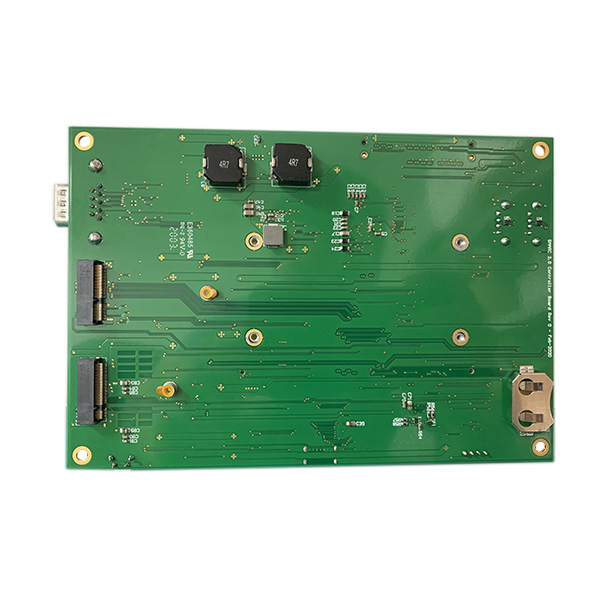

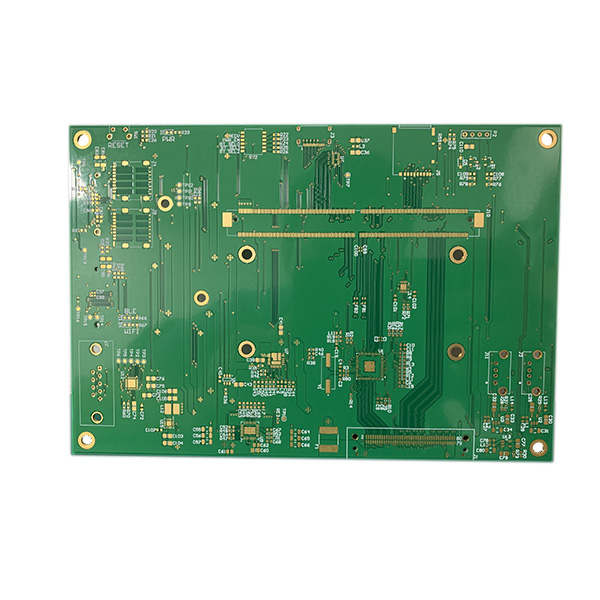

LED display control system

Short Description:

This is a PCB assembly project for LED display control system. We, at Pandawill, are experts in smart home manufacturing services. Thanks to our smart factories, our engineers and machines use big data analysis, cloud computing, artificial intelligence (AI) and 3D-printing to create connected devices for smart home.
From design and PCB board manufacturing to NPI services and end-to-end product lifecycle solutions, our smart factories can bring smart supply chain solutions to our customers, for all their smart home devices.


  • FOB Price: US $12/Piece
  • Min Order Quantity(MOQ): 1 PCS
  • Supply Capability:: 100,000,000 PCS per month
  • Payment Terms: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    Product Details

    Layers 6 layers
    Board thickness 1.60 MM
    Material Shengyi S1000-2 FR-4(TG≥170℃)
    Copper thickness 1.5 OZ(50um)
    Surface Finish Immersion Gold; Au Thickness 0.05 um; Ni Thickness 3um
    Min Hole(mm) 0.20mm
    Min Line Width(mm) 0.12mm
    Min Line Space(mm) 0.12mm
    Solder Mask Green
    Legend Color White
    Board size 128*175mm
    PCB Assembly  SMT on both side
    RoHS Complied Lead free assembly process
    Min components size 0402
    Total components 1288 per board
    IC Package BGA; QFN
    Main IC Intel, Texas Instruments, Advantech, STMicro
    Test  AOI, X-Ray, Functional test
    Application LED display controller

    Electronic Manufacturing Services for Smart Home

    Your fridge is talking to your phone, while the lights are being turned off based on your habits and the window shades taking care of themselves. The smart everything and connected devices era have facilitated lots of tasks we previously had to take care of, ourselves. With expertise in telecommunication protocols making the “everything smart” possible, we make the connected world a reality, daily.



    Our engineering and manufacturing services experience in telecommunication makes us the best EMS partner for your smart home products.



    Smart home devices and equipment are redefining the way we live. With so many options at our fingertips, the smart everything and connected era have brought more and more electronics devices into our daily lives, automating lots of tasks we now take care of, remotely.



    Smart home devices and connected devices overall, are nothing new to the electronics industry: it is simply a miniaturization of existing systems (previously used in industrial environments), combined to the increasing use of data and a more consumer oriented human/machine interaction.



    We, at Pandawill, are experts in smart home manufacturing services. Thanks to our smart factories, our engineers and machines use big data analysis, cloud computing, artificial intelligence (AI) and 3D-printing to create connected devices for smart home.

    From design and PCB board manufacturing to NPI services and end-to-end product lifecycle solutions, our smart factories can bring smart supply chain solutions to our customers, for all their smart home devices.



    Electronic manufacturing service provider for Smart Home, we manufacture:

    > Automated door controls and systems

    > Sensors (Motion, Leak, Intrusion, etc.)

    > Gateway modules

    > Communication modules

    > Smart home central controllers

    > Controllers

    > Smart meters

    > Audio devices and equipment

    > Security devices and equipment

    > Smart lighting
