1 & 2 Layer PCB

  • 2 layer circuit board for smart electronic lock

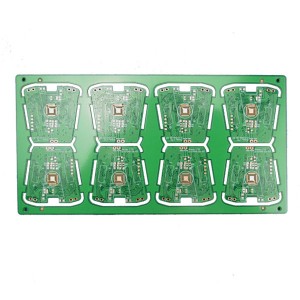

    2 layer circuit board for smart electronic lock

    This is a 2 layer circuit board smart home electronic lock. UL certified ShengYi S1141 FR-4 tg130, 1.0mm board thickness, 1 OZ(35um) copper thickness, Immersion gold finish, green solder mask and white silk screen. As it is a small board, the PCB delivered by panel 20*3=60 PCS per panel. The outline profile use stamp hole and CNC rounting. All the production complay with RoHS requirement.

  • 2 layer circuit board HASL Lead Free finish

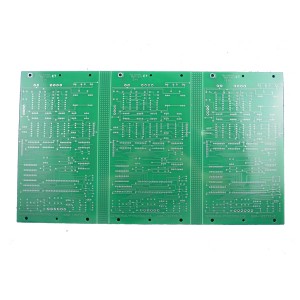

    2 layer circuit board HASL Lead Free finish

    This is a 2 layer circuit board for renewables product. UL certified ShengYi S1141 FR-4 tg130, 1.6mm board thickness, 1 OZ(35um) copper thickness, HASL lead free finish, green solder mask and white silk screen. 3 PCS per panel with V-Cut outline processing.  All the production complay with RoHS requirement.

  • 2 layer circuit board plated half hole PCB for Sensor product

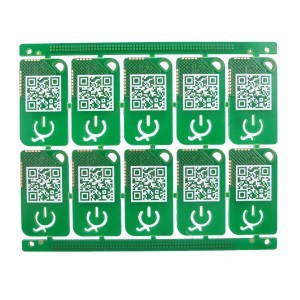

    2 layer circuit board plated half hole PCB for Sensor product

    This is a 2 layer circuit board with plated half hole for sensor product. UL certified Shengyi S1141, FR-4 tg130, 1.6mm thickness, 1.5 OZ(50um) copper thickness, green solder mask and white silk screen.  There is QR-code on the PCB to identify. All the production complay with RoHS requirement.

  • 1 & 2 layer PCB\RoHS compliant 2 layer FR4 PCB

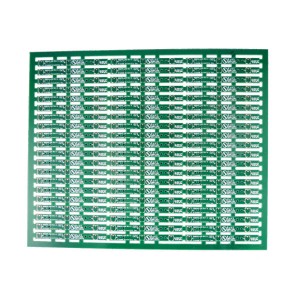

    1 & 2 layer PCB\RoHS compliant 2 layer FR4 PCB

    This is a 2 layer circuit board with immersion gold finish. The specifications are standard, FR4 tg130, 1.6mm thickness, 1 OZ(35um) copper thickness, green solder mask and white silk screen. As it is a small board, the PCB delivered by panel 20*3=60 PCS per panel. The outline profile use stamp hole and CNC rounting. All the production complay with RoHS requirement.
