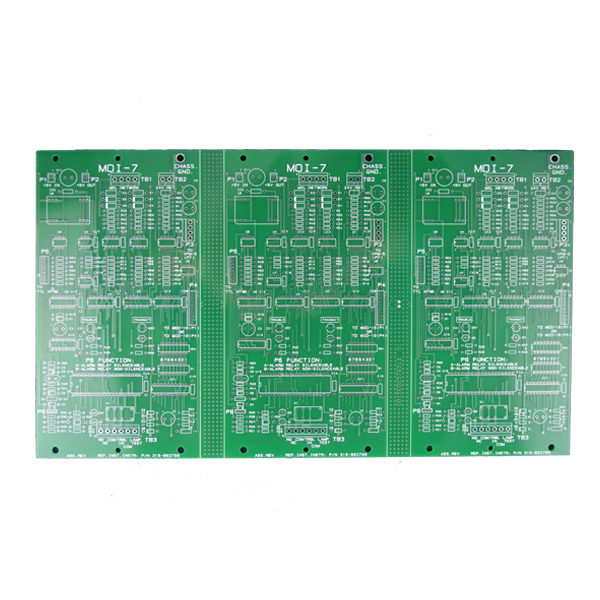

2 layer circuit board HASL Lead Free finish
Product Details
| Layers | 2 layers |
| Board thickness | 1.60MM |
| Material | FR4 tg130 |
| Copper thickness | 1.5 OZ(50um) |
| Surface Finish | ENIG Au Thickness: 0.05um; Ni Thickness 3um |
| Min Hole(mm) | 0.46mm |
| Min Line Width(mm) | 0.25mm |
| Min Line Space(mm) | 0.28mm |
| Solder Mask | Green |
| Legend Color | White |
| Mechanical processing | V-scoring |
| Packing | Anti-static bag |
| E-test | Flying probe or Fixture |
| Acceptance standard | IPC-A-600H Class 2 |
| Application | Consumer electronics |
1. Introduction
In this section, we would like to provide you with some basic details about the manufacture of single and double-sided printed circuit boards. This is meant to help you to make decisions when placing an order. We are happy to send you more extensive product information based on your requests.
2. General details
|
|
Standard |
Special** |
| Max. circuit size | 508mm X 610mm | 500mm*1200mm |
| Thickness of the printed circuit | 0.50 - 0.80 - 1.00 - 1.55 - 2.00 - 2.40mm | 0.1mm to 4.2mm |
| Copper coating | 18 - 35 - 70 - 105µm | as requested |
3. Materials
| Material type | Material class |
| Standard FR4 | Expoy resin glass fabric |
| Modified FR4 system | Medium Tg, high Tg, halogen free |
| CEM1 | Hard paper core with FR4 external layers |
| High frequency material | Rogers RO 4003® Isola FR408, Isola370HR etc |
You are welcome to ask about other materials. We are happy to send datasheets on request.
4. Mechanical processing
- Scoring
- Milling contour
- CNC Routing
- Punch
- Vertical milling
- Edge metallisation
- Mechanical drilling (from 0.15 mm diameter)
- Laser drilling
5. Solder Mask
Green, Blue, Red, White, Black, Clear, Yellow, etc.
6. Surface Finish
HASL(lead free), Immersion gold(ENIG/hard/soft), Selective Gold, Immersion Silver, OSP, Gold Finger, Carbon Print, Peelable S/M
7. Silk Screen
White, blue, red, yellow, black, green
8. Test systems
AOI (Automatic Optical Inspection)
Electrical test (flying probe or fixture)
Thermal shock tests
Cutting sections for analysis
Microscopic investigations
Final electrical tests
