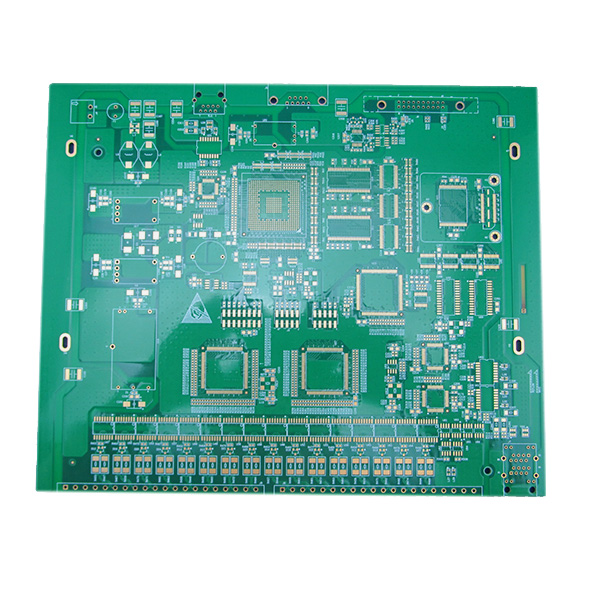

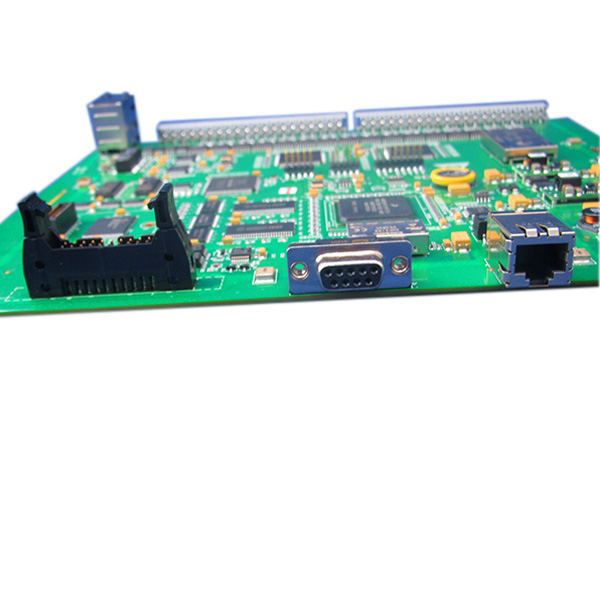

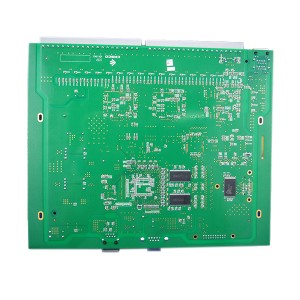

Signal processing control board

Short Description:

This is a PCB assembly project for signal processing control board. The industrial industry has been historically one of the major segment served by Pandawill yet we are now witnessing the Internet of Things, with a specific attention towards the Industrial Internet of Things (IIoT), which will bring connectivity and automation to factories and companies around the world.


  • FOB Price: US $129/Piece
  • Min Order Quantity(MOQ): 1 PCS
  • Supply Capability:: 100,000,000 PCS per month
  • Payment Terms: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    Product Details

    Layers 10 layers
    Board thickness 1.60 MM
    Material Shengyi S1000-2 FR-4(TG≥170℃)
    Copper thickness 1 OZ(35um)
    Surface Finish Immersion Gold; Au Thickness 0.05 um; Ni Thickness 3um
    Min Hole(mm) 0.1mm via plugged with epoxy
    Min Line Width(mm) 0.12mm
    Min Line Space(mm) 0.15mm
    Solder Mask Green
     Legend Color White
    Board size 160*150
    PCB Assembly  Mixed surface mount & through hole assembly
    RoHS Complied Lead free assembly process
    Min components size 0402
    Total components 1205 per board
    IC Package BGA; QFN
    Main IC Maxim, Freescale Semiconductor, CYPRESS, ALTERA, ISSI, COSEL, CORTINA
    Test  AOI, X-Ray, Functional test
    Application Industrial signal processing

    Industrial applications consist of various technologies applied to numerous industries. From printed circuit board assembly (PCBA) to full product assembly and manufacturing, it implies dealing with complex electronic circuit boards as well as mechanical enclosures (sheet metals, CNC, plastics), to reach the perfect result for our customers. Your EMS partner must be expert for years in electronic manufacturing solutions.



    The industrial industry has been historically one of the major segment served by Pandawill yet we are now witnessing the Internet of Things, with a specific attention towards the Industrial Internet of Things (IIoT), which will bring connectivity and automation to factories and companies around the world.



    To support such advancement, teaming up with the right partner is instrumental to bringing new products to market succesfully. At Pandawill, we offer the full array of services from design and specifications definition to mass-production at all of our 18 locations.



    As an electronic contract manufacturing company and industrial electronics manufacturer, leader in our fields, we have integrated in our factories new methods brought with the industry 4.0, like: automation, artificial intelligence, cloud computing, 3D-Printing, Internet of Things platforms (IoT), big data and analytics.



    Electronic manufacturing service provider for industrial, our capabilities include:

    > ATM & Industrial machines

    > Automation devices and equipment

    > Machinery

    > Vending machines

    > Power systems

    > Electrical transmissions

    > Receivers, Transceivers

    > Power tools

    > Instrumentation devices and equipment
