GPS Navigation System

Short Description:

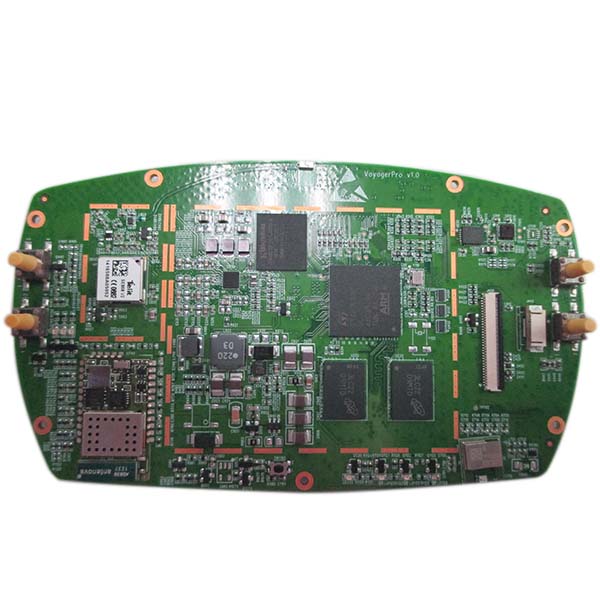

This is a PCB assembly project for GPS navigation system used for motocycle. The automotive industry has very stringent requirements in terms of operations and processes, quality and on time deliveries. All of which being priorities and at the heart of Asteelflash’s rules of operations, worldwide. As an automotive electronics company and automotive PCBA manufacturer, we, at Pandawill, deliver high quality services in engineering, design and prototyping.


  • FOB Price: US $12/Piece
  • Min Order Quantity(MOQ): 1 PCS
  • Supply Capability: 100,000,000 PCS per month
  • Payment Terms: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    GPS Navigation System motocycle

    Product Details

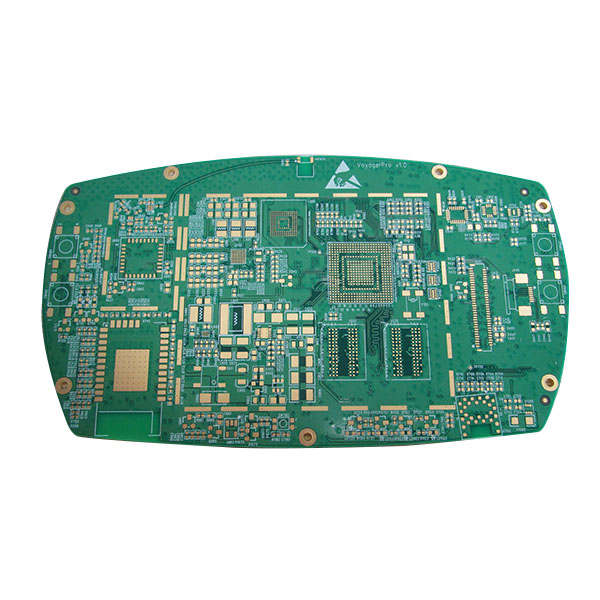

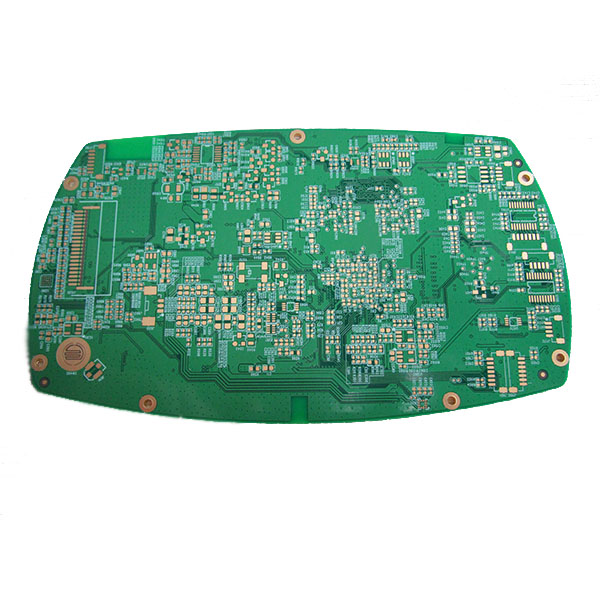

    Layers 6 layers
    Board thickness 1.60 MM
    Material Shengyi S1000-2 FR-4(TG≥170℃)
    Copper thickness 1 OZ(35um)
    Surface Finish (ENIG)   Immersion gold
    Min Hole(mm) 0.10mm laser drilling
    Min Line Width(mm) 0.15mm
    Min Line Space(mm) 0.18mm
    Solder Mask Green
     Legend Color White
    Board size 131*75mm
    PCB Assembly  Mixed surface mount assembly on both sides
    RoHS Complied Lead free assembly process
    Min components size 0402
    Total components 821 per board

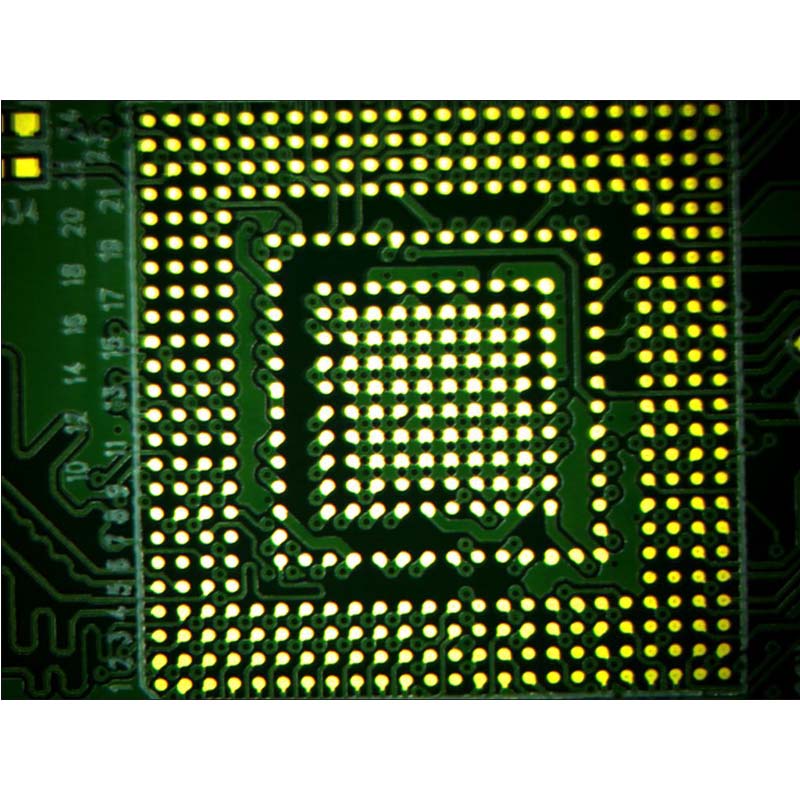

    IC Package BGA; QFN
    Main IC Maxim, exas Instruments, On Semiconductors, Intersil, ARM, Fairchild, NXP, Telit Module
    Test  AOI, X-Ray, Functional test
    Application GPS system

    With more than 15 years experience as Electronic manufacturing service provider for Telecommunication, we support various devices and telecommunication protocols:
    > Computing devices & equipment
    > Servers & routers
    > RF & Microwave
    > Data centers
    > Data storage
    > Fiber optic devices
    > Transceivers and transmitters

    The automotive industry has very stringent requirements in terms of operations and processes, quality and on time deliveries. All of which being priorities and at the heart of Pandawill’s rules of operations, worldwide. As an automotive electronics company and automotive PCBA manufacturer, we, at Pandawill, deliver high quality services in engineering, design and prototyping.



    Automotive electronics require the highest level of quality given the related applications, changing the way we live and move around, across the board. Electronics are the main contributor to the connected vehicle revolution we are witnessing.

    Thanks to electronic manufacturing solutions, engineering and manufacturing services, we, as an EMS company for years, have developed high-end solutions for automotive electronics.



    With electronic content per car expected to increase and contemplating the likelihood of seeing autonomous cars wandering around our streets, we at Pandawill are proud to contribute to changing the way people live and travel around throughout extensive experience in Automotive-related electronic manufacturing services, from controllers and power modules to infotainment, door modules, camera products, smart lighting, etc.



    Our experience as a contract manufacturer in automotive brings to our clients the best electronic manufacturing services (EMS), from design, engineering and prototyping to new product introduction and mass production.



    Electronic manufacturing service provider for Automotive, we cover numerous applications:

    Automotive camera product

    Temperature & humidity sensors

    Headlight

    Smart lighting

    Power modules

    Door controllers & door handles

    Body control modules

    Energy management
